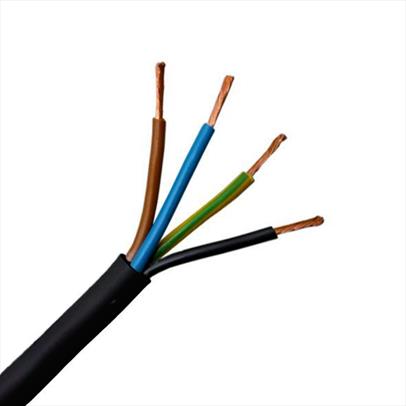

4 Core PVC LSF Flex Black Cable

Product Code: 3184B/0.75/BLK

Members - please login for prices

How to use Order Form?

Product Description

4 Core PVC LSF Flex Black‚Äč

The 318-B LSZH cable is a standard wiring cable with halogen-free thermoplastic insulation for use in conduit or trunking. Ideal for installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment.

Technical Information:

Available in the following sizes:

  • 100 x 0.75mm
  • 100 x 1.00mm
  • 100 x 1.5mm
  • 100 x 2.5mm

Technical Specification:
Voltage Rating 300V / 500V
Temperature Rating +5°C to +70°C
Materials Class 5 Flexible Copper
Insulation LSZH (Low Smoke Zero Halogen) Type TI6
Sheath LSZH (Low Smoke Zero Halogen) Type TM7
Flame Propagation IEC/EN 60332-1-2
Standards EN 50525-3-11,
EN 60228
