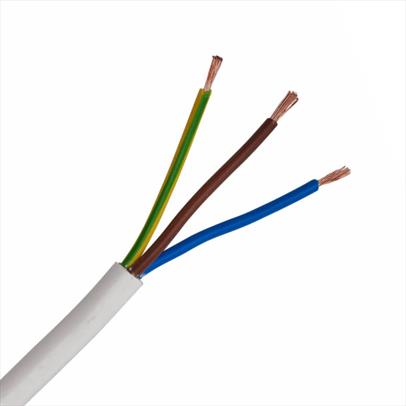

3 Core Heat Resistant Butyl Flex Cable

Product Code: 3183TQ/0.75MM

Members - please login for prices

How to use Order Form?

Product Description

3 Core Heat Resistant Butyl Flex​

The H05BN4-F is a flexible rubber cable with high temperature resistance for use in conduit or trunking.

Technical Information:

Available in the following sizes:

  • 100 x 0.75mm
  • 100 x 1.00mm
  • 100 x 1.5mm
  • 100 x 2.5mm

Technical Specification:
Voltage Rating 300V / 500V
Temperature Rating -40°C to +90°C
Materials Class 5 Flexible Copper
Insulation EPR (Ethylene Propylene Rubber)
Outer Sheath HOFR CSP (Heat and Oil Resistant and
Flame Retardant Chlorosulphonated Polyethylene)
Flame Propagation IEC/EN 60332-1-2
Oil Resistance IEC/EN 50363-2-1
Standards EN 50525-2-21, HD22.12,
EN 60228, CEI 20-19 Part 12
