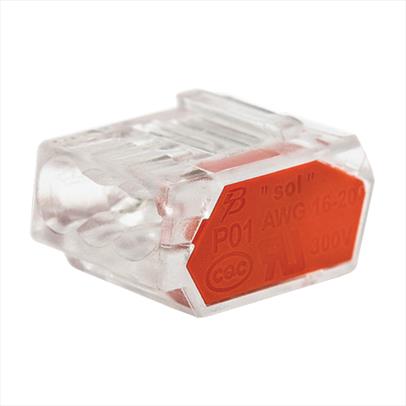

Screwless Terminal Connection Blocks
Product Code: SDK3
Product Description
Screwless Terminal Connection Blocks
Push-Fit Connectors, available in 3 Way, 5 Way & 8 Way.
Suitable For;
Stranded Cables - 1.5mm - 2.5mm
Solid Cable - 0.5mm - 2.5mm
Not suitable for fine stranded cable
| Technical Specification: | SDK3 | SKD5 | SDK8 |
| Rating | 450V / 24A | ||
| Impedance | 300V / 20A | ||
| Temperature Rating | +90°C | ||
| Material | Polycarbonate UL94 V2 | ||
| Conductors | 3 | 5 | 8 |
| Dimensions (H x W x D) | 11mm x 13.5mm x 19.2mm | 11mm x 21mm x 19.2mm | 11mm x 31mm x 19.2mm |
| Colour | Orange | Grey | Black |
| Conductor Entry | 3 x Solid or Stranded | 5 x Solid or Stranded | 8 x Solid or Stranded |
| Standard of Compliance | BS 60998-1, 60998-2-2 | ||
