Safety Edge - Slimscreen 9mm - Switchable 115VAC-230VAC - With Control Box
Product Code: SL9MM-230VAC
Product Description
Safety Edge - Slimscreen 9mm - Switchable 115VAC-230VAC - With Control Box
5-YEAR GUARANTEE AGAINST ALL MANUFACTURING DEFECTS*

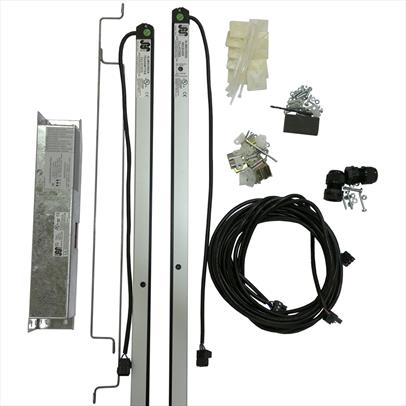

A fully comprehensive safety edge kit supplied with all necessary fixings, cable clips, and cable ties.
Fixings include:
- All necessary nuts, washers, spring washers, and screws
- Full set of car wall clamps
- Hexagonal key
Technical Information:
Supplied with Extension Cables approx. length 3.4m - If they get trapped or damaged these extension cables can easily be repaired using standard 3 core 0.75mm cable. There is no need to buy expensive replacement cables.
- Patented diagonal beam
- 45ms response to beam interruption
- These Slimscreen Safety Edges are supplied with a control box
- Failsafe response
- Detection Buzzer
Rear fixing kits can be selected from the drop-down box above
FORMULA SYSTEM CODES
Edges - FCU 0735
​Controller box - FPS 0274
*Guarantee does not extend to on-site damage
| Technical Specification: | |
|---|---|
| Dimensions | 9mm x 26.5mm x 1866mm |
| Range of Detection | 1.5m - Door Mounted, 3.0m - Track End Mounted |
| Number of Beams | 35 non-focused beams |
| Profile Rating | IP54 |
| Response Time | <100ms |
| Supply Voltage | +18 to 30VDC |
| Current Consumption | 100mA (Typical) |
| Operating Temperature | -20°C to +70°C |
| Case Material | Aluminim Alloy |
| Lens Filter | Infra-Red Transparent Platic |
| Certifications | UL, cUL - CE (EMC marked) |
