Safety Edge - Slimscreen 9mm- 24VDC - No Control Box

Product Code: SL9MM-24VDC

Members - please login for prices

How to use Order Form?

Product Description

Safety Edge - Slimscreen 9mm - Switchable 115VAC-230VAC - With Control Box

5-YEAR GUARANTEE AGAINST ALL MANUFACTURING DEFECTS*

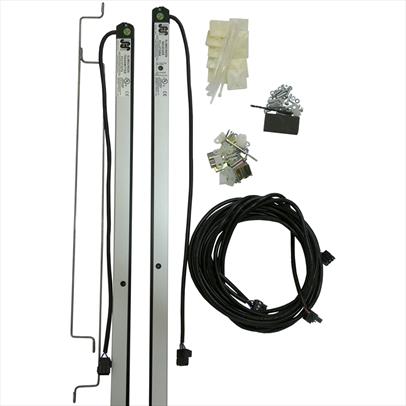

A fully comprehensive safety edge kit supplied with all necessary fixings, cable clips, and cable ties.

Fixings include:

  • All necessary nuts, washers, spring washers, and screws
  • Full set of car wall clamps
  • Hexagonal key

Technical Information:

Supplied with Extension Cables approx. length 3.4m - If they get trapped or damaged these extension cables can easily be repaired using standard 3 core 0.75mm cable. There is no need to buy expensive replacement cables.

  • Patented diagonal beam
  • 45ms response to beam interruption

Rear fixing kits can be selected from the drop-down box above

FORMULA SYSTEM CODES
Edges - FCU 0735​

THIS SAFETY EDGE CAN BE USED AS A DIRECT PLUG-IN REPLACEMENT FOR KONE MONOSPACE LIFTS......
KONE PRODUCT CODE FCU-0740GB02 (2010MM HIGH) - OUR EDGES ARE A SLIGHTLY SHORTER VERSION (1866MM HIGH)

*Guarantee does not extend to on-site damage


Technical Specification:
Dimensions 9mm x 26.5mm x 1866mm
Range of Detection 1.5m - Door Mounted, 3.0m - Track End Mounted
Number of Beams 35 non-focused beams
Profile Rating IP54
Response Time <100ms
Supply Voltage +18 to 30VDC
Current Consumption 100mA (Typical)
Operating Temperature -20°C to +70°C
Case Material Aluminim Alloy
Lens Filter Infra-Red Transparent Platic
Certifications UL, cUL - CE (EMC marked)
