Safety Edge - Safescreen 30mm - 24VDC - No Control Box
Product Code: SS30MM-24VDC
Product Description
.............................................................................
10 YEAR GUARANTEE AGAINST ALL MANUFACTURING DEFECTS
..............................................................................
Safescreen 30mm safety edges - 24VDC Supply - No control box required.

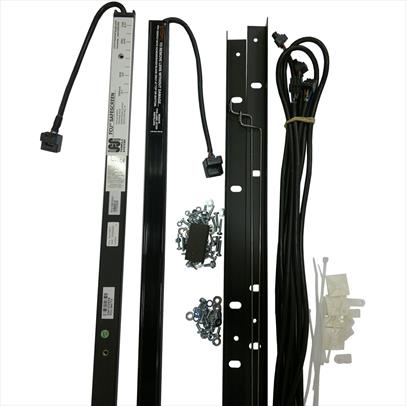

Our free fully comprehensive fixing kit includes
Cable clips and ties.
All necessary nuts, washers, spring washers, screws.
Mounting brackets
Cable retainers
Spacer block
Screwdriver
Drill bit
Supplied with Extension Cables approx length 4m - If they get trapped or damaged these extension cables can easily be repaired using standard 3 core 0.75mm cable. There is no need to buy expensive replacement cables.
Patented diagonal beam
Edge Height 2136mm - can be cut down to 2006mm
Range of detection 1800mm
45ms response to beam interruption
These safescreen safety edges do not need a separate control box.
Failsafe response
(Guarantee does not extend to on site damage)
FORMULA SYSTEMS CODES
Edges FCU 0547
