Flush Mounted Maglock - Door Holding Device For Manual Gated Cars

Product Code: MAGLOCK/1

Members - please login for prices

How to use Order Form?

Product Description

Flush Mounted Maglock - Door Holding Device For Manual Gated Cars

A unique product designed to prevent unnecessary lift breakdowns on manual gated lift cars

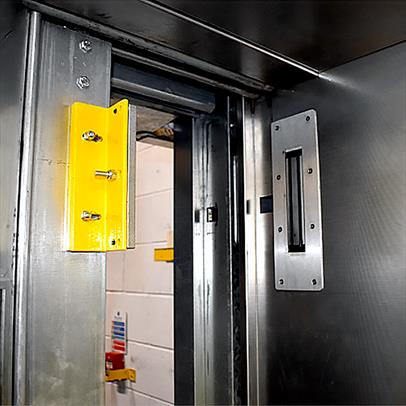

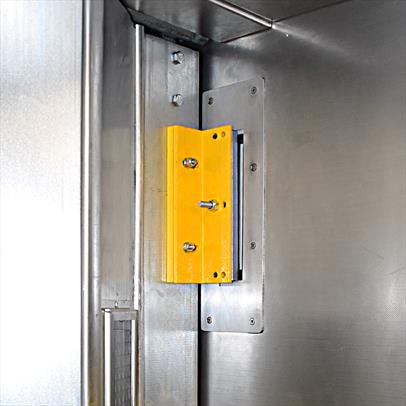

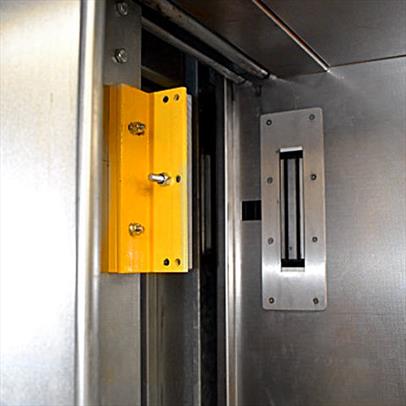

The Flush Mounted MAGLOCK receiver is mounted inside the car, on the car wall, and the magnet block is mounted on the leading edge of the internal manual gate. When the doors are shut and the lift moves away from the floor, the MAGLOCK activates and holds the door firmly in place. It will not deactivate until the lift has reached a complete standstill at floor level.

The MAGLOCK offers the following benefits.

  • Prevents all unwanted car door movement in mid-travel.
  • Prevents passengers from opening the lift car doors in mid-travel
  • Prevents passengers from trying to open the lift car door before the lift has come to a complete stop
  • Easy to open the lift doors when the MAGLOCK is de-energized because there is no need to have Matthew catches fitted
  • Maintenance free
  • One-person installation
  • No controller modification is needed
  • Interface kit designed to operate from the existing retiring ramp at voltages (between 100VDC - 220VDC)
  • Complete with monitoring feedback system for car gate contact to ensure that the magnets and doors are fully closed before moving away from the landing

Technical Information:

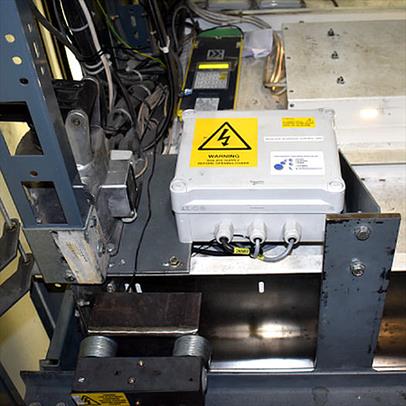

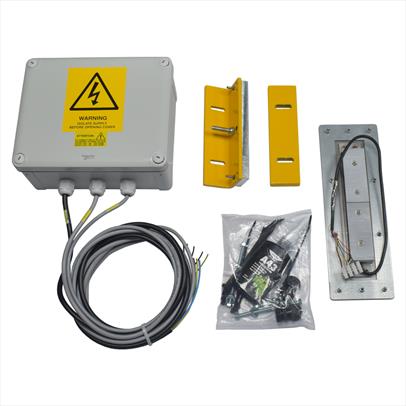

MAGLOCK + Fixing Plate

  • Built-in surge protection
  • 600lbs (272kg) holding force @ 12VDC
  • MAGLOCK locking plate and bracket
  • Spacer packer included
  • All necessary fixings and a thread lock supplied

CONTROL BOX

  • Dual pole miniature circuit breaker(2A) for supply
  • Relay base
  • Supplied with 2 x plug-in relay (1x 110VDC, 1x 220VDC)
  • Pre-wired flexes for connection to mains (2m), Ramp (2m), Maglock (3m)
    Maglock requires a hole cut out of 240mm x 50mm

Replacement part options available from the drop-down box above.

Please use the instruction pdf file below for installation and wiring diagram.


Technical Specification:
Maglock Holding Force 12VDC = 600lbs (272kg)
Control Box Dimensions ~240mm x 190mm x 100mm
Maglock Dimensions 230mm x 38mm x 29mm
Maglock Weight ~1kg
Control Box Material (ABS Plastic) Acrylonitrile Butadiene Styrene
Maglock material Aluminium
Supply Voltage 230VAC
Output Voltage (To Maglock) 12/24VDC @ 480/240mA
