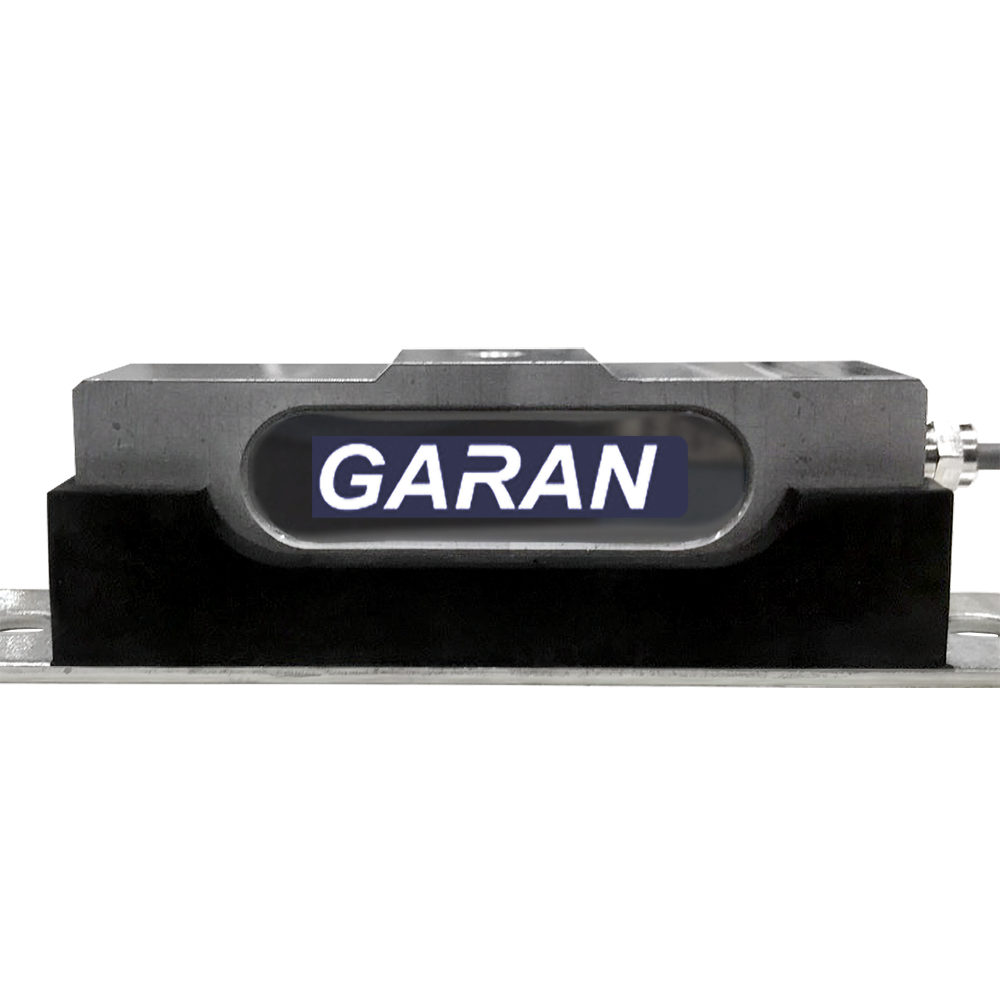

GARAN - CCT A 800 Cabin Sensor - Pack of 4

Product Code: GARAN/CCTA

Members - please login for prices

How to use Order Form?

Product Description

These cabin sensors are designed to be used under the elevator car floor.

The Model CCT shear beam sensor is supplied with it own integral rubber mounting arrangement, specifically designed for installation below the elevator car. It is supplied in matched groups of up to six sensors per lift car, dependant on load. It comprises a full wheatstone bridge allowing for individuals sensors to be swapped out.

CABIN SENSOR:

  • Anodised aluminium construction
  • Up to 3000kg load (4Sensors)
  • High accuracy
  • Matched outputs
  • Individual sensor can be replaced
  • Perfect for new installations
  • Number of Floors: 20+
  • Protection – IP65.
  • Cable Length – 5 Metres.

This product works in conjunction with the following control units – Sold Separate

EWS 102 Standard.
EWS 102 Multi Analog Output.

Cabin Sensors are sold in packs of 4
