TC4 - STORM Keypad
Product Code: TC4-STORM
Product Description

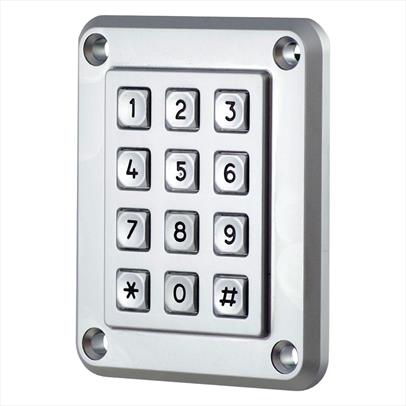

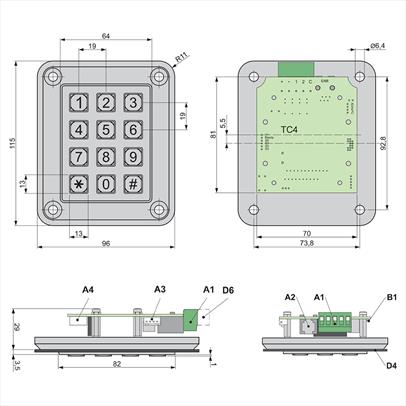

TC4 - STORM Keypad
The TC4-STORM offers a high protection against vandalism. With its appealing form it shows that robustness and an asthetic design do not have to conflict with each other.
Technical Information:
- Code length 4 to 6 digit.
- 32 access codes useable, changeable by keypad at anytime.
- Two switching outputs in the device.

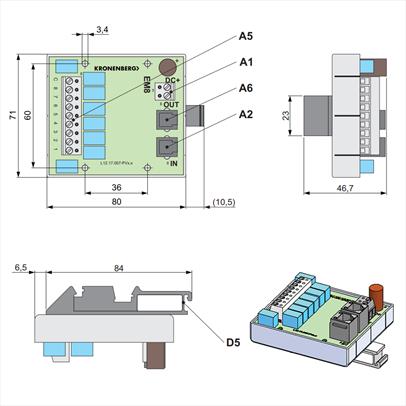

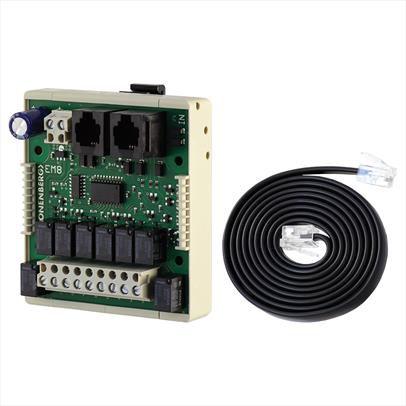

- With extension modules EM8 allowing expansion for up to 26 outputs.
- Adjustable switch-on time from 0.1 to 25.4 seconds.
Please see pdf file below for further technical details.
​Please note that this is a non-returnable item.
| Technical Specification: | |
|---|---|
| Nominal Voltage | 24VDC |
| Power Supply | 19 - 30VDC |
| Current Consumption | 9mA - When idle, 30mA - When in operation |
| Switching Voltage | 60V (Max.) |
| Switching Current | 1A (Max.) |
| Connection | Pluggable screw terminal block 5-pole, max 2.5mm² |
| IP Rating | IP54 (Front), IP00 (rRear side) |
| Temperature Rating | -10°C to +50°C |
