iButton Key Fob Access Control System

Product Code: IBUTTON/1/FM

Members - please login for prices

How to use Order Form?

Product Description

iButton Key Fob Access Control System

Elevator Equipment Limited's new iButton Access Control System is a user-friendly access system with an iButton type key.
The device can be programmed to give access for up to 512 user keys to one dry contact output relay. Thus, it is a “multiple-to-one” type system.

The user can store or delete a user key to/from the system’s memory with a simple push button press.

Used For: Elevator access control, Personnel access control, VIP access control, Residential building access control, Electronic lock systems.

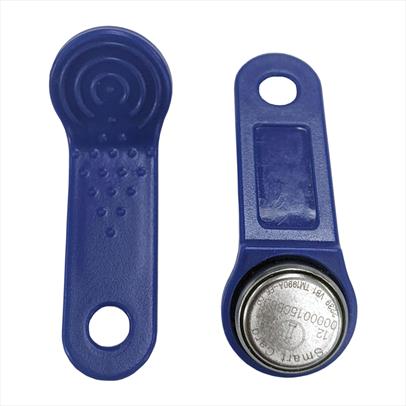

Please note, KEYFOBS are sold separately and must be ordered with each iButton Access Control System.

Technical Information:

Key type: iButton standard 64 bit ROM key

User keys: Supports up to 512 user keys.

Relay “ON time”: Adjustable from 0.5s (min.) to 8s (max.)

Outputs: 1 Dry contact relay 5V (NO/COM/NC) with 1A per contact typical current handling


Technical Specification:
Supply Voltage 12VDC to 24VDC
Consumption 0.5W (avg.) at 12VDC input
Temperature Rating 0°C to +60°C
Humidity Rating 10% to 80%

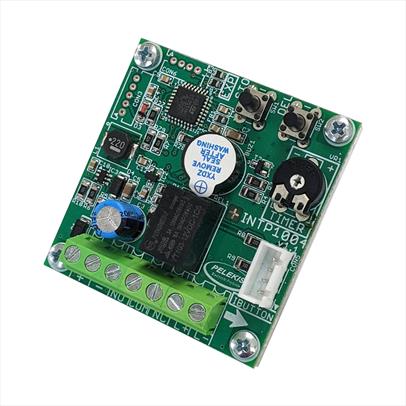

PCB Dimensions (1 Relay) 56mm x 53mm x 20mm (W x H x D)

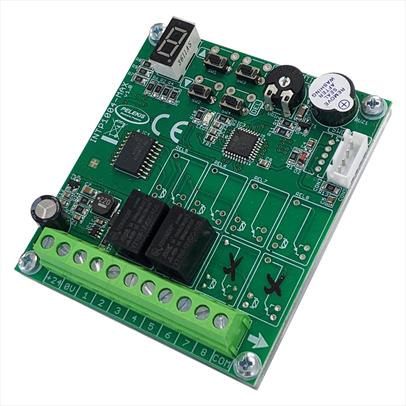

PCB Dimensions (2-8 Relay) 74mm x 82mm x 25mm (W x H x D)

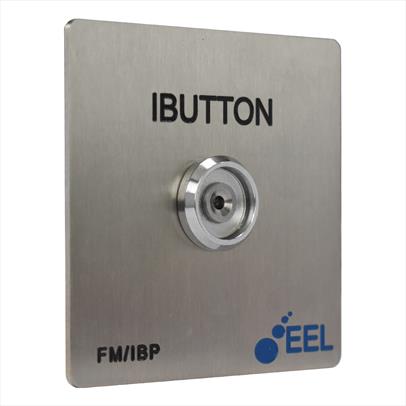

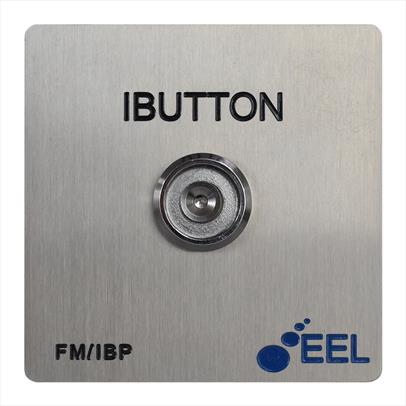

Flush Mounted Faceplate 80mm x 80mm x 2mm (W x H x D)

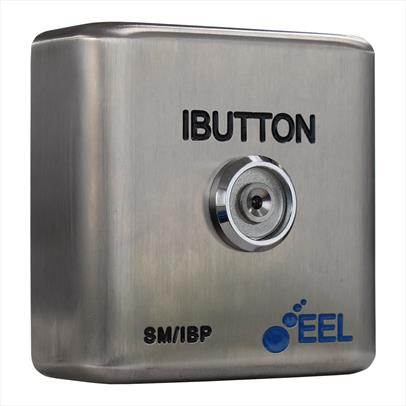

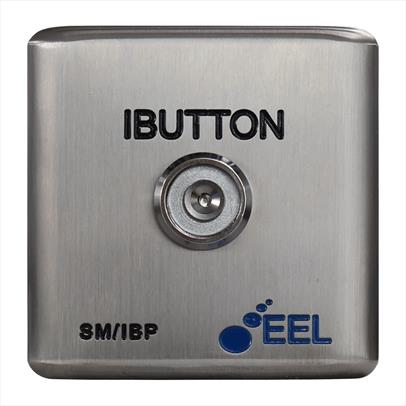

Surface Mounted Faceplate 80mm x 80mm x 30mm (W x H x D)

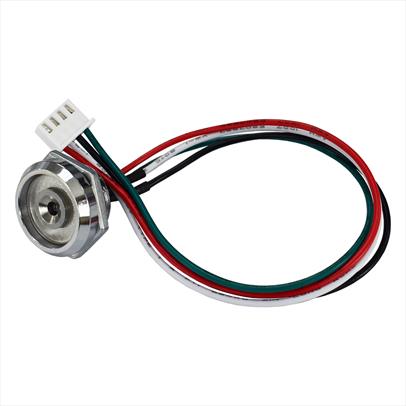

iButton Hole Diameter 18mm
