12/24VDC IP68 Backlit Braille Waterproof Keypad

Product Code: AS-ATP2S200

Members - please login for prices

How to use Order Form?

Product Description

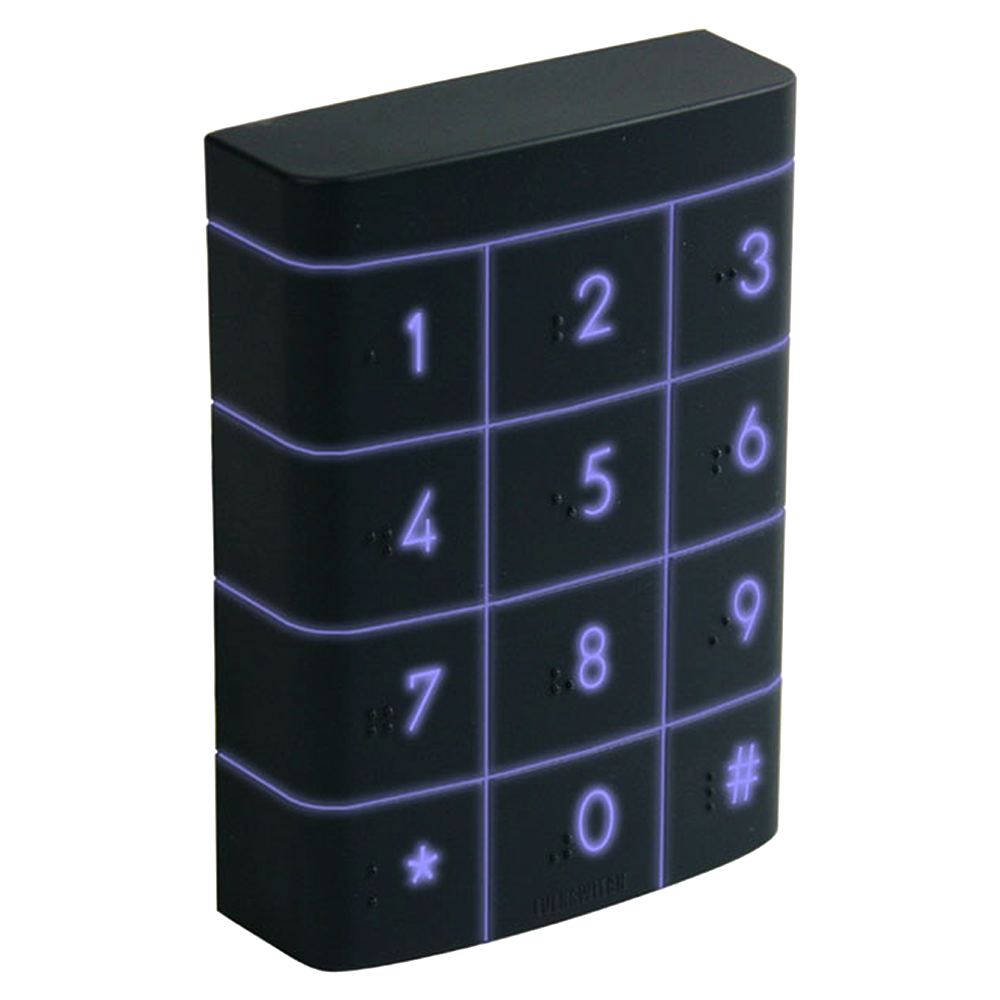

This keypad is for internal and external use, designed with a vandal and tamper proof sealed rugged weatherised polycarbonate enclosure.

It also provides an audio and visual feedback via the built in LED's and buzzer whenever a pin number is presented. Guaranteed for over 50,000,000 cycles, this unit has an impressive list of benefits.
Built in illumination allows for use of this keypad in locations that are primarily dark.

These vandal resistant keypads are suitable for up to 200 users with no moving parts and are manufactured to highest standards for external and internal use


  • Surface Mounted
  • No Moving Parts, Solid State Piezo technology
  • Waterproof: IP68 Certificated Highest certification available
  • Backlit Illumination with Braille Facility

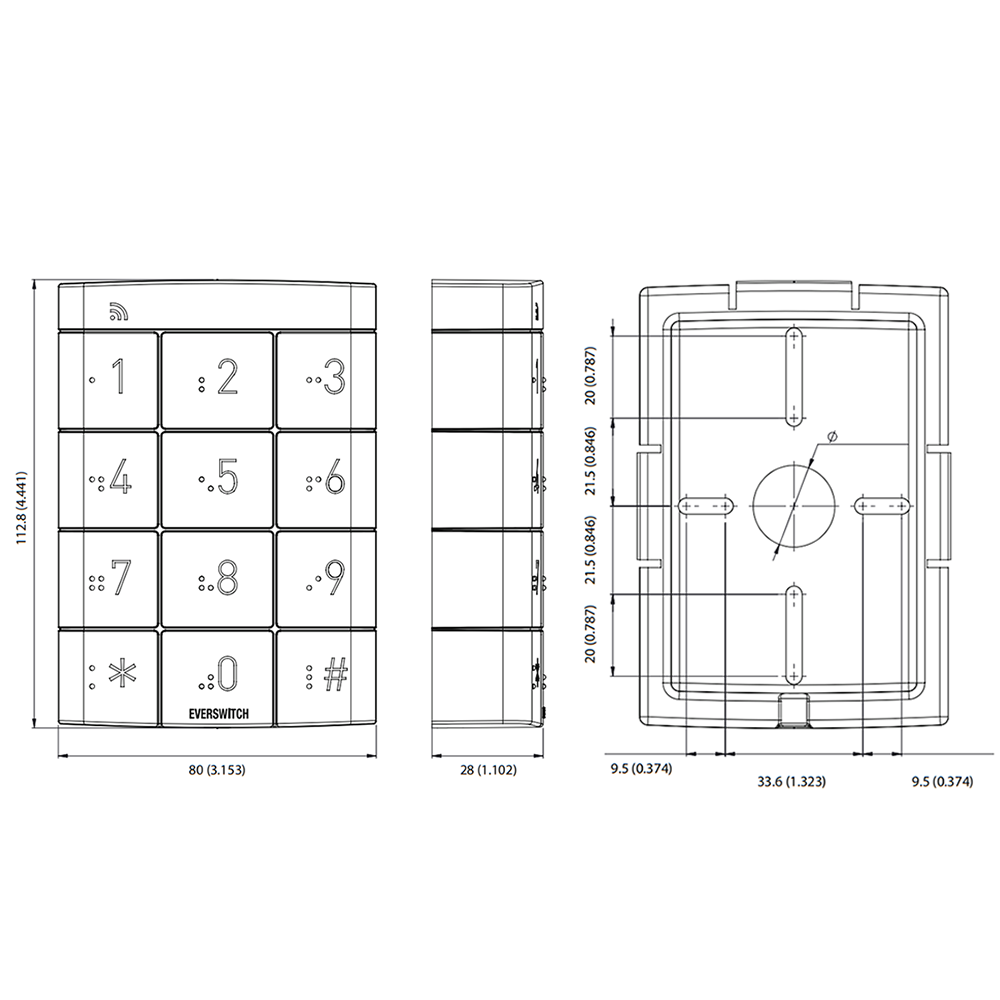

  • Dimensions: 112.8mm(H) x 80mm(W) x 28mm(D)
  • 2 amp changeover relay 12V AC or 12-24VDC (±10%) power 120mA maximum
  • Working Temperatures: -20°C to 75°C
  • Temper & Vandal Resistant, one piece, solid housing
  • Audio & Visual Feedback Timeout functions for code entry and programming
  • Variable Length Codes, up to 200 User Codes 100 million combinaiton 4 to 8 digit codes which can be used simultaneously
  • Approvals CE and UL
