Retiring Cam Unit - Motorised Version - RKMO

Product Code: RKMO-24VDC

Members - please login for prices

How to use Order Form?

Product Description

Technical Information:

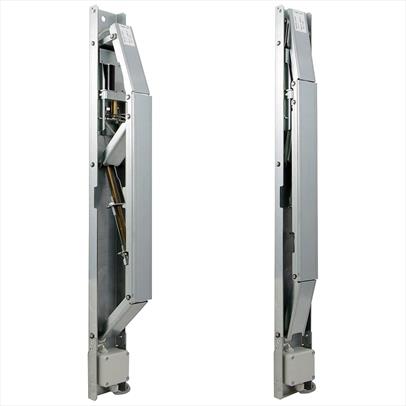

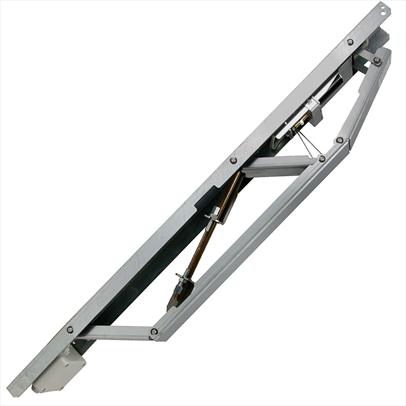

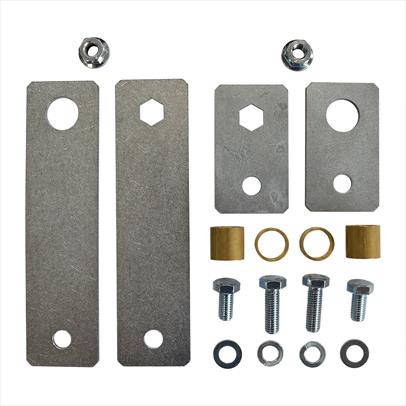

The RKMO retiring cam unit is motor-driven and runs almost silent when unlocking and locking. The cam is available in a 24VDC version or as a 100-250VDC/AC wide-range voltage input. This new motorised retiring cam is also characterised by low power consumption, with a high actuation force and a large adjustable stroke. The RKMO can replace the retiring cams types EMT15K, EMT17 and EMT18 with the corresponding mounting kit (see attached data sheet).


  • Drive with maintenance-free three-phase motor
  • High actuation forces up to 65 N
  • Especially low total height of only 50 mm
  • Large stroke up to 50 mm, adjustable
  • Suitable for all Dewhurst Gatelocks.
  • Energy-saving due to low power requirement of only 1 A at 24 V and reduced Holding current
  • Duty cycle of any length (100 % duty cycle)
  • Hardly perceptible unlocking and locking of the landing doors due to low noise emission ‚Äč


Once ordered they can only be returned for faults resulting from the manufacture. All manufacturing faults must be reported within 5 days of receipt. A credit will be issued after the item has been returned to Kronenberg and deemed to be a fault of manufacture. All items that are deemed to have been damaged by the customer will be returned and a credit will not be issued. A full report from Kronenberg will be made available at this point.

Technical Data:

Dust Cycle: 100%
Total Height: Energised / Retracted: 50mm , Current less / Dropped: 75 - 100mm adjustable
Stroke: 25 - 50mm adjustable
Actuation Force: 65N
Ambient Air Temperature: -10 °C up to +45 °C
Customary Position: Vertical, motor drive above

RKMO - 24DC:
Nominal Voltage: 24VDC stabilized / regulated
Admissible Voltage Range: 21V up to 30V
Peak Voltage: 36V
Pull-in / Holding Current: 1A / 0.25A
Connection: 2m connection cable, 2 x 1mm²
Level of Protection: IP00 (safety extra-low voltage)
Weight 2.7kg

RKMO - 230V:
Nominal Voltage: 100V - 250VAC or DC (rectified alternating voltage)
Input Current: 0.4A at 230VAC
Connection: 2m connection cable, 2 x 1mm²
Level of Protection: IP20, insulated
Weight: 2.9kg
