Emergency Power Supply Pack - 12VDC
Product Code: 1202SM-1
Product Description

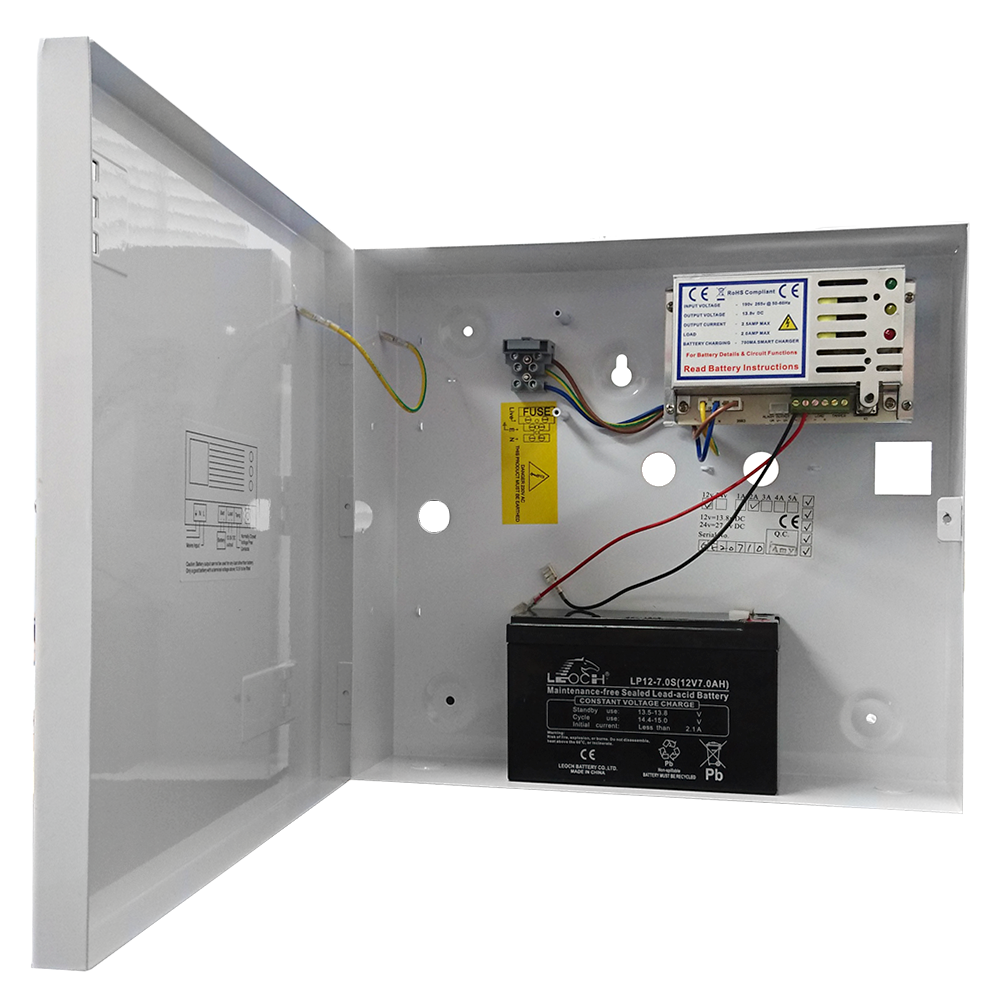

12 VDC Emergency Power Supply Pack
For installations that require a battery back up supply. i.e. Alarm systems, access and entry control and general use.
Mains input - 190 - 265V AC 50/60 Hz
- Full current load
- Output - 12-14VDC
- Battery - Up to 9Ah SLA
- Additional Battery charging
- Deep discharge protection
- Current limiting
- LED indicators - Mains, Battery, Output fault indicator
- Short circuit protection
- Battery current limiting circuit (electronic)
- Mains transient protection
- 225h x 196w x 75d
- Weight 2.6 kilo
- Switch mode technology
- Mild steel construction
- White powder coated
- On board tamper protection
- Vented enclosure for heat dissipation
- Multi cable entry point
- Rear cable entry
- Cable retention points
- Mains fuse - AC230V 2A
- Wiring instructions supplied
- More efficient and environmentally friendly
- UKCA approved
- EMC to EN61000-6-1 & 3
- RFI to EN55022
- BS 5839

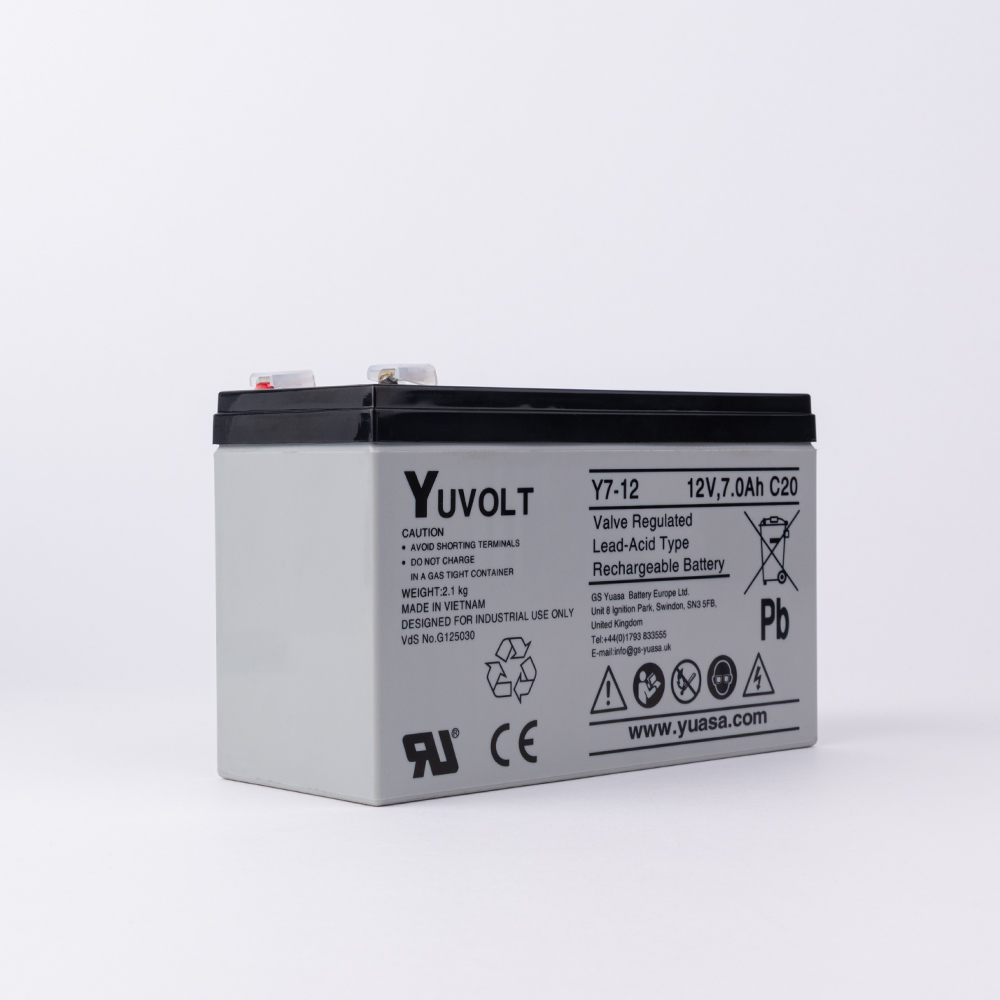

- Supplied with 12V - 7ah battery
- Up to 92% energy efficiency (reduced running costs and lower power usage)
- Switchmode technology
- Din rail design for greater versatility
- Full electronic protection
- Onboard tamper protection
- Converts power more efficiently
- Multiple cable entry
