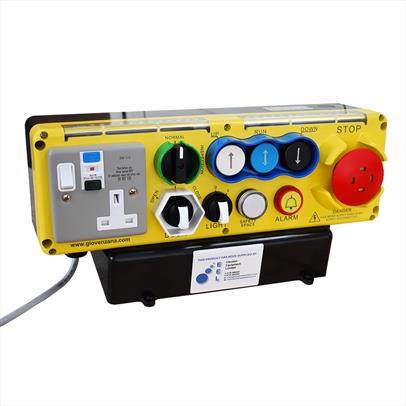

Slimline Car Top Control Unit - With Emergency Back Up

Product Code: GMS405W001

Members - please login for prices

How to use Order Form?

Product Description

Slimline Car Top Control Unit - GMS405W001

Product Description:

The GM Slimline Car Top Control Unit is made using superior quality material under strict quality control to ensure accuracy, durability and performance.

Fully compliant with EN 81-20 regulation

The N/C Mushroom E-Stop Contact, included in this unit, will open in the unlikely event that one of the supports should break. The contact is designed to intervene and open the circuit, blocking any further operation of the machine. This is an important step in accident prevention and emergency device intervention, resulting in a risk factor of zero.

Technical Information:

IP54 Rated
Dimensions: 360mm, 170mm, 92mm (Width x Height x Depth)
LED Pre-wired Car Top Lighting with Emergency Back-up
UK RCD 3 Pin Socket Pre-wired
Spring Clamp Terminals
Push/Pull 60mm Flag Indicated Emergency Stop Button
2 x NO-NC-NO Self-Monitored Contact
6 x Rechargeable “AA” Batteries
2 x Blanking Buttons

Technical Specification:

Test/Normal Cam Switch - 3 x NO, 3 x NC
Up Button 1 x NO Contact, 1 x NC Contact
Down Buttons 1 x NO Contact, 1 x NC Contact
Run Button 1 x NO Contact
Door Open/Closed 2 x NO Contacts
Alarm Button 1 x NO Contact
Light Switch 2 x NO Contact
Safe Space Indicator 24VAC/DC
Alarm Button 12VAC/DC Indicator
