Pizzato Replacement Car Top Control Unit with Flag Indicated Stop Button
Product Code: ELAD21057
Product Description

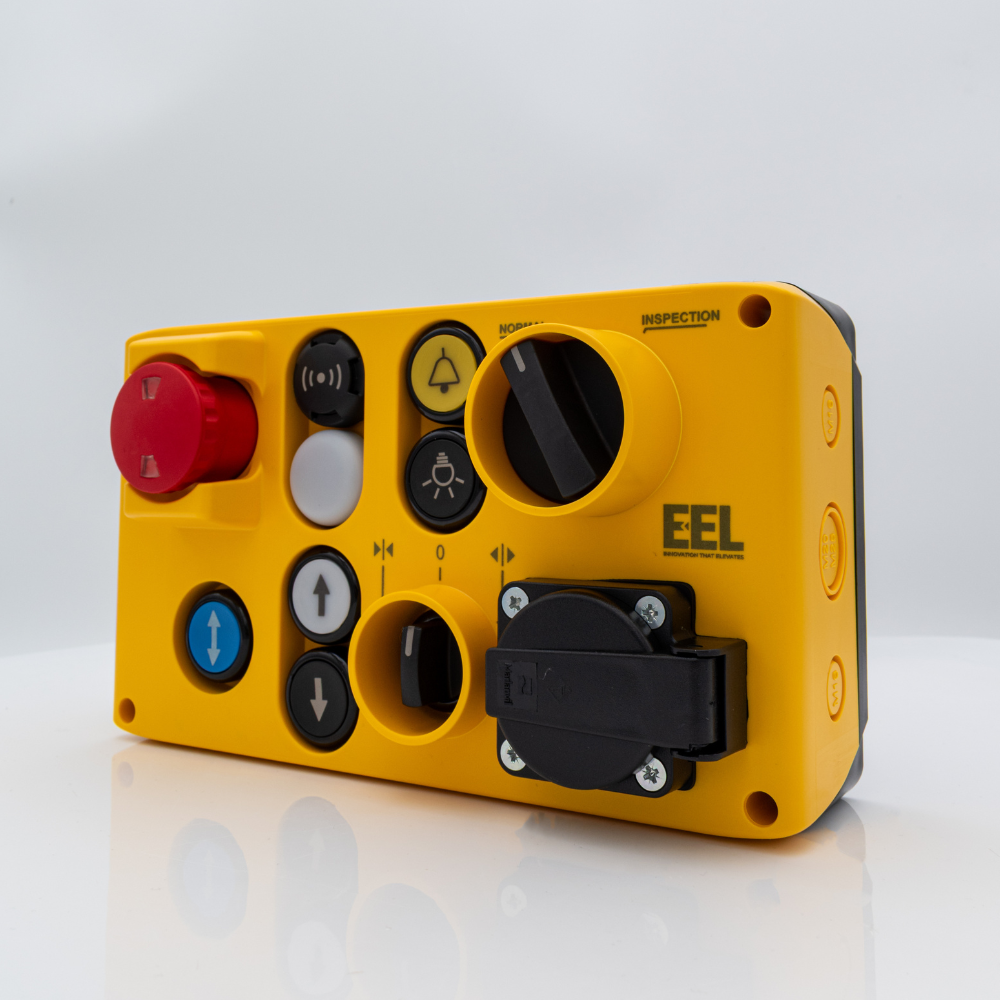

Pizzato Replacement Car Top Control Unit with Flag Indicated Stop Button
Car top control unit with 10 cable entry points:
4 x 16mm entries (2 located on each side).
2x 20-25mm entries (1 located on each side).
4 x 20mm entries (4 located on the base).
Shock proof, self extinguishing, housing with technopolymer cover.
Mounting measurements' are displayed on the base of the unit for ease of installation
Protection to EN 60529
IP54 - Rated
Captive screws
Composition:
1 Emergency Pushbutton Flag Indicated Ø 40 - 2 x Self monitored Contact
1 Pushbutton UP - 2NO+1NC
1 Pushbutton DOWN - 2NO+1NC
1 Normal/inspection Switch - 2NO+2NC Cam Switch
1 Pushbutton DUAL Up/Down- 1NO
1 Pushbutton Engineer's Alarm - 1NO
1 Pushbutton Momentary Test Light - 1NO
Safe Space Light
24V Buzzer
3 Pin UK Socket with Back Protection Cover
Replacements components available
Approximate Dimensions
Box Measurements Only: 90mm Wide x 280mm High x 62mm Deep
Overall Measurements (including hook & Stop button): 90mm Wide x 280mm High x 108mm Deep
Self adhesive magnetic bases, contacts and replacement pushbuttons available.
Please contact us via email modularity for custom builds
