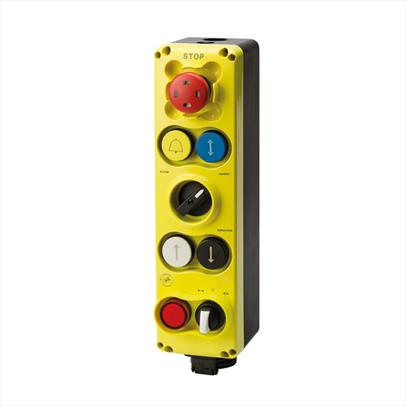

GM Series Car Top Control Unit - GM756/UK

Product Code: GM756/UK

Members - please login for prices

How to use Order Form?

Product Description

GM Series car top controller unit

Fully compliant to EN81.20

  • IP54 Rated
  • Spring clamp terminals
  • Test/Normal cam switch - 2 x NO, 2 x NC contact
  • Up button 2 x NO, 1 x NC contact
  • Down button 2 x NO, 1 x NC contact
  • Run button 2 x NO contacts
  • 1 x Red LED Light AC/DC 24V
  • 1 x Door Open/Close cam switch, 1 x NO contact
  • Alarm button 1 x NO contact
  • UK 3 Pin socket
  • Ideal for lifts with automatic door
  • Non Wired
  • Push/Pull 40mm flag indicated emergency stop button. 2 x NC contact. Using our unique fast trigger contact block to meet the new machine room rule EN 602041. In the event that the contact block breaks loose or is accidentally released from the base of the push button then the NC contact will open and the lift will be isolated, preventing any further operation.
  • Additional contact blocks can be selected from the drop down box.
