Shaft Wall Panelling- according to EN 81-20 18.104.22.168.1

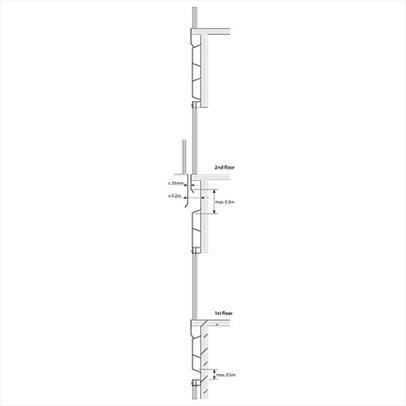

The horizontal distance between the inner shaft wall and the door sill or the door frame of the car or the closing edge of a sliding car door must not exceed 0.15m over the entire shaft height.
The distance indicated above may be scaled up to 0.20 , if the height does not exceed 0.50 m. Between two successive landing doors there must not be more than one recess.

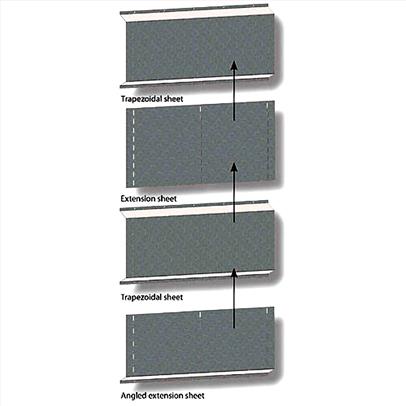

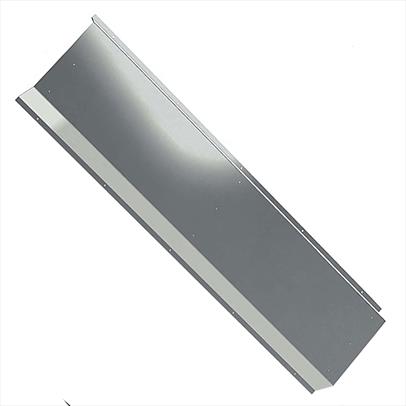

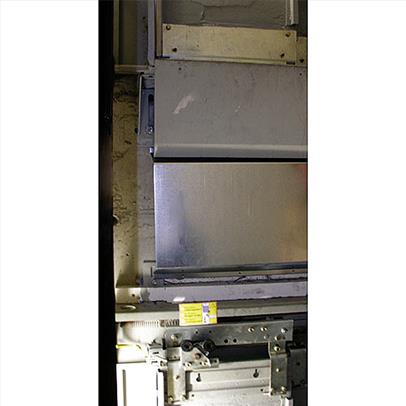

If these dimensions are exceeded, a shaft wall panelling is necessary. The shaft wall panelling consists of 1.5mm hot-dip galvanised sheet steel and it is available in two sizes. The metal sheets can be stacked into each other and therefore can be transported easily. With the extension sheets a continuous surface between two doors can be realised. With the flat tapping screws (Art.no. 50781) a safe connection of the individual sheet metal parts is possible without problems.

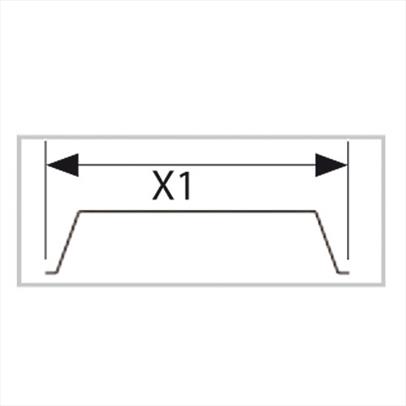

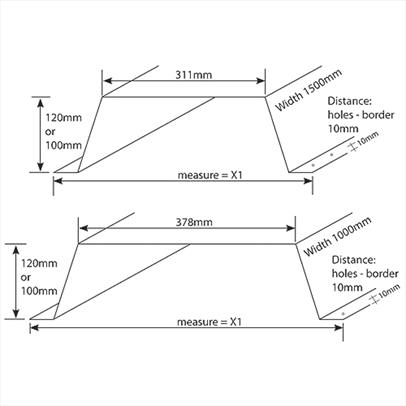

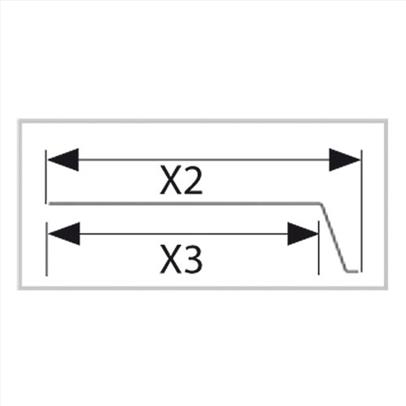

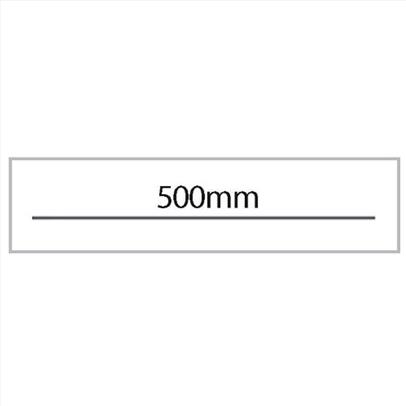

Width of the steel sheets: 1000 or 1500mm
Height of the steel sheets: 100 or 120mm
