TECHNICAL INFORMATION:
Number of sensing points - 32.
Number of beams - 205
Operating distance - 0mm-4000mm.
Supply voltage - 220VAC with Red power indicator.
Relay contact (6A), N/O & N/C.
Tone signal 1 - Door close buzzer - Control unit - Yes
Tone signal 2 - Safety edge blocked buzzer - Flashing indicator on RX- Yes
Indicators - Red static power LED on RX and TX. Beam interrupt signal on RX.
Dimensions - 10.2mm x 36mm x 2000mm.
Auto beam cancelling up to 8 beams automatically.
Fail-safe system fitted as standard.
3 metre detachable leads.
Fully compliant with EN81-70
Light immunity - 50,000-80,000 lux

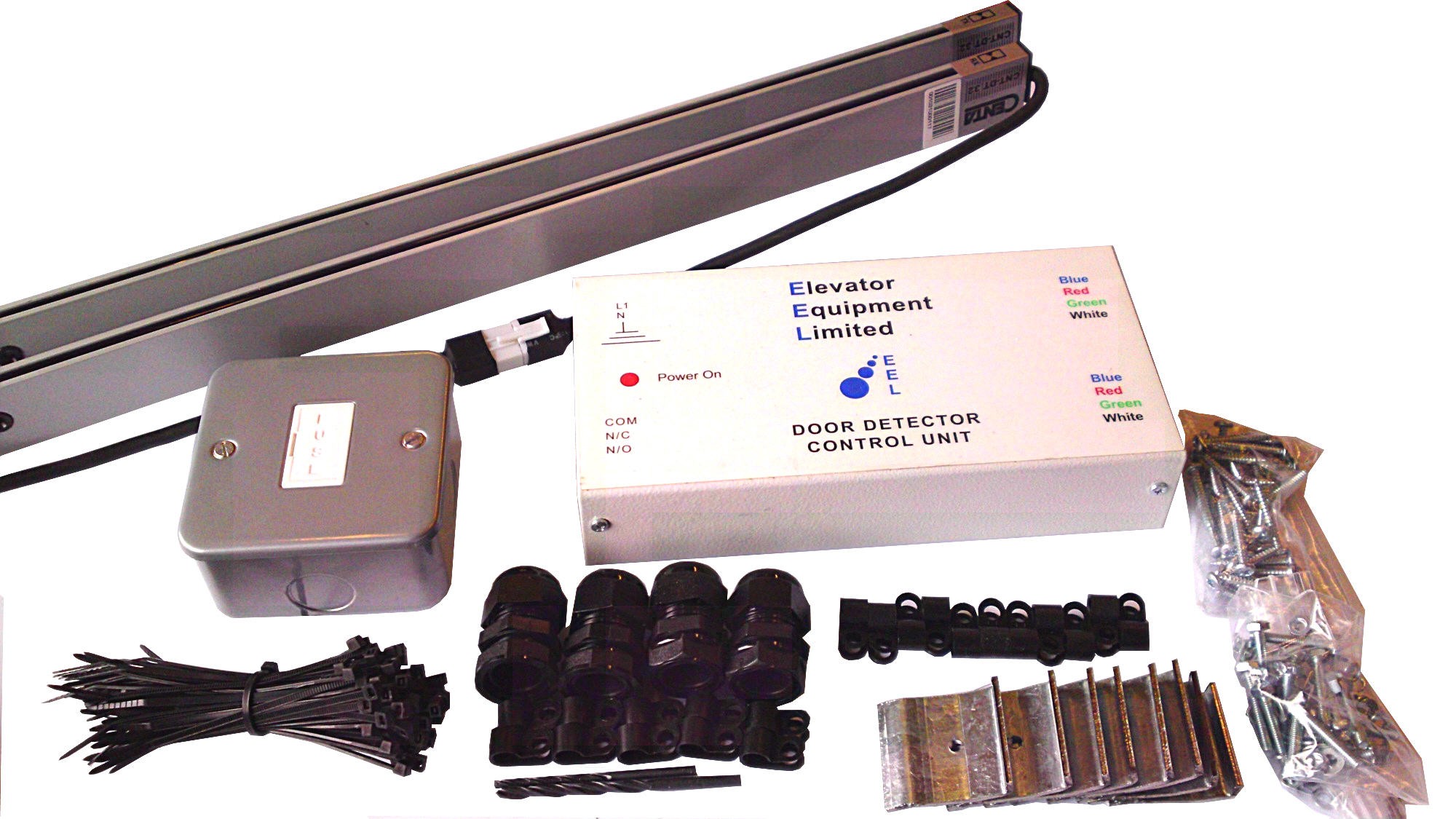

We have two different kit options.
Option One - Door & Slam Post Mounting Kit - Product code - CL1672/R
Safety Edges
13 amp spur unit.
Slam post fixing clamps.
Double sided strong tape.
P-Clips.
All necessary fixings.
Drill bits.
Option two - Rear Mounting Kit - Product Code CL1672/REAR
Safety edges
Rear Mounting kit ( see pdf download for kit drawing )
13 Amp spur unit
P-Clips
Drill Bit
Glands
Tie wraps
Screws
Please select your option from the drop down box below.
Discount available for volume quantities.
