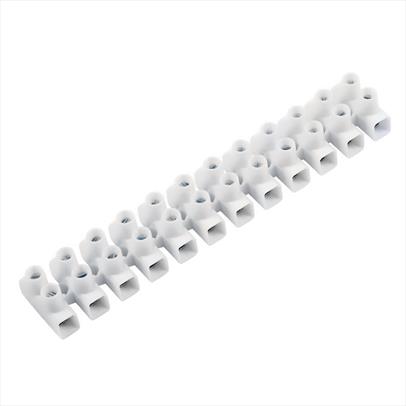

Thermoplastic T80 450V 12-Way Strip Connectors
Product Code: PN2TCE
Product Description
Thermoplastic T80 450V 12-Way Strip Connectors
Sold in packs of ten
Technical Information:
Available in the following:
- 2.5A 12-Way strip connectors
- 5A 12-Way strip connectors
- 15A 12-Way strip connectors
- 30A 12-Way strip connectors
| Technical Specification: | |
|---|---|
| Max Operating Temperature | 80°C (Continuous), 110°C (Short Period) |
| Dimensions Per Connection | 12mm x 15mm x 20mm |
| Rated Insulation Voltage | 450V |
| Rated Current | 2.5A, 5A, 15A, 30A |
| Rated Connection Capacity | 4.00mm² |
| Terminals | Screw Connection |
| Screw Diameter | 2.5mm |
| Material of Insulation | PA660 |
