Emergency Power Supply Pack - 24VDC

Product Code: 2402SM-2

Members - please login for prices

How to use Order Form?

Product Description

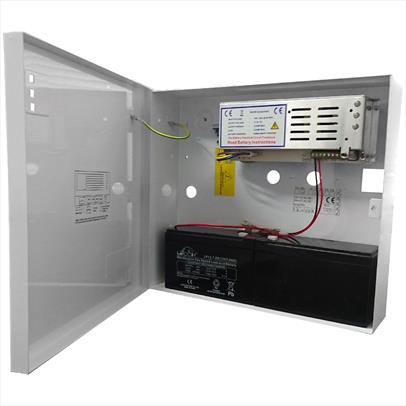

24 VDC Emergency Power Supply Pack

For installations that require a battery back up supply. i.e. Alarm systems, access and entry control and general use.

Mains input - 190 - 265V AC 50/60Hz

  • Full current load
  • Output - 27.6 volt dc regulated output
  • Voltage regulation - 5% Maximum
  • Ripple - <5% of output voltage
  • Battery - Up to 2 x 17Ah SLA
  • Fuses - PTC self resetting fuses fitted as standard for load and battery protection. Mains fuse T3.15A
  • Additional Battery charging
  • Deep discharge protection
  • Current limiting
  • LED indicators Mains - Battery output - Fault
  • Short circuit protection
  • Battery current limiting circuit (electronic)
  • Mains transient protection
  • 310h x 340w x 80d
  • Weight 2.6 kilo
  • Switch mode technology
  • Mild steel construction
  • White powder coated
  • On board tamper protection
  • Vented enclosure for heat dissipation
  • Multi cable entry point
  • Rear cable entry
  • Cable retention points
  • Wiring instructions supplied
  • More efficient and environmentally friendly
  • CE approved
  • EMC to EN55011
  • ​RFI to EN55022
  • ​​BS 5839
  • Supplied with 2 x 12V - 7 amp batteries
